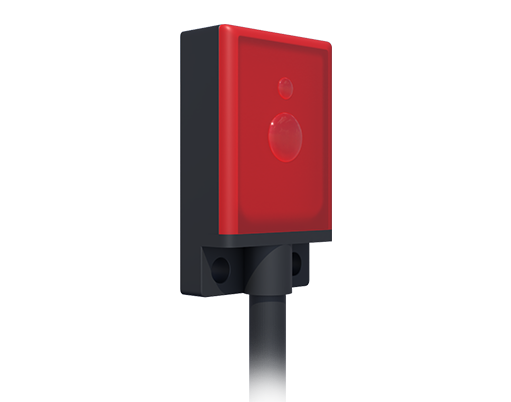

Thin photoelectric sensor

Stable performance of intelligent chips

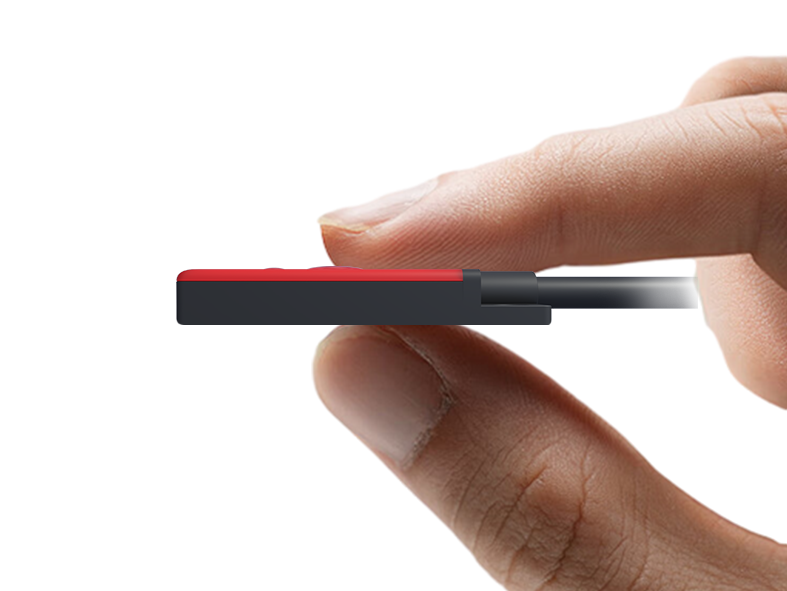

Small stature, great wisdom Slim body shape, powerful performance, able to be installed in very small spaces

Compact and compact structure

Featuring a very compact shell size, it can be easily integrated and installed even in small spaces

Multiple protection, security and stability

Not only does it protect the product itself, but it also protects the equipment from damage

model	NPN	KN-FT11	KN-FD11
	PNP	KN-FT11P	KN-FD11P

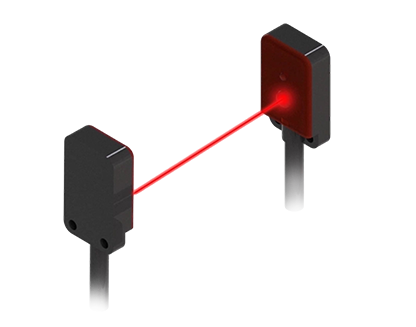

	type	Shooting type	reflection-type
detection distance		0.6M	2~30mm
spot diameter		3-8mm (the farther, the larger)	About 5mm (when 30mm)
light source		Point light source red LED (650nm)
reaction time		Maximum 1ms
pilot lamp		Output: Red; Stable operation; Green; Transmitting transmitter power supply: green 10-30VDC with ripple current (P-P) 10%
supply voltage		10~30VDC ripple current (P-P) 10%
Consumption current		15mA	20mA
control output		NPN output type: NPN collector open circuit below 30VDC, below 50mA; Residual voltage: below 10mA, below 1.5V at 10-30mA, below 2.0V at 30-50mA
