Product Features

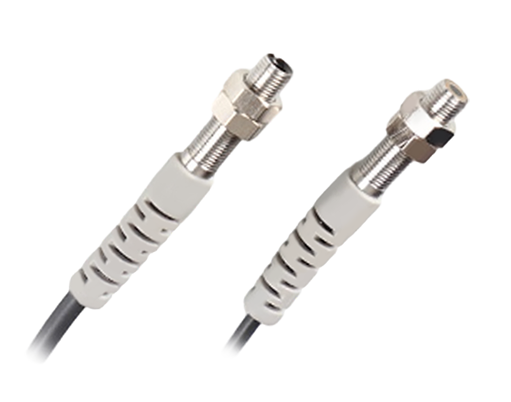

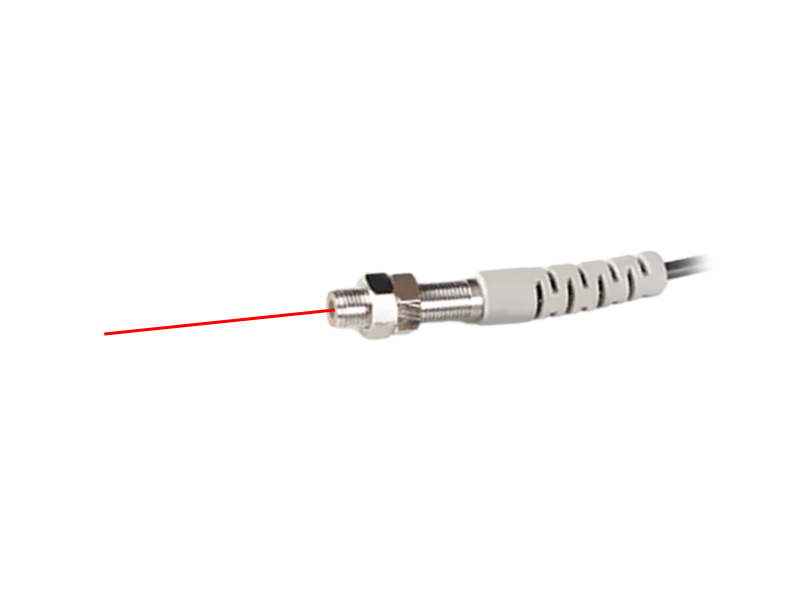

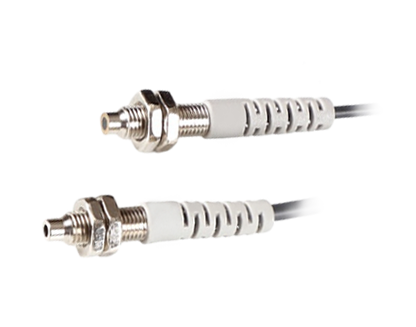

Laser fiber optic photoelectric sensor
Sensitive response and excellent design High sensitivity, adopting an exterior design that meets market requirements for greater safety and stability
Strong and sturdy wire, stable and durable
Comes with signal amplifier
Technical Parameter
| model | KN-LDM5/KN-LDM8/KN-LDM12 | |
| detection distance | 0-100mm/0-150mm/0-200mm | |
| Output | NPN/PNP normally open/normally closed | |
| spot size | Standard configuration around 2.0mm | |
| working voltage | 10-30VDC | |
| No load current | Less than 10mA | |
| Maximum Load | 150mA | |
| Voltage drop | Less than 1.5V | |
| switching frequency | 100Hz | |
| response time | 5ms | |
| Switch delay | Less than 15% (Sr) | |
| Protection level | IP65 | |
| work environment | 0℃-50℃ | |
| temperature drift | Less than 10% (Sr) | |
| overload protection | 100mA | |
| Standard cable length | 2 meters | |
