Product Features

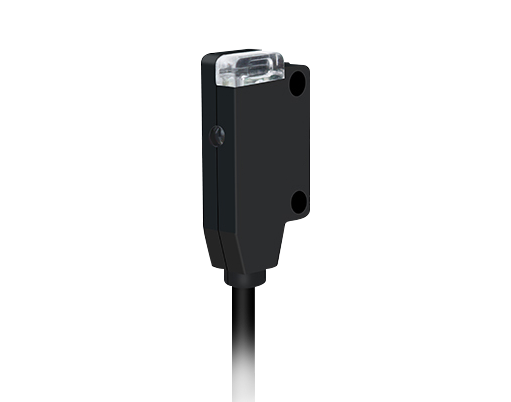

Ultra thin photoelectric sensor
Suitable for multiple devices Suitable for various industries such as machine tool equipment, textile industry, workshop assembly line, express delivery industry, chemical industry, automotive repair industry, etc
ABS flame retardant and heat-resistant shell
Sensitivity and adjustable detection distance
Technical Parameter
| model | NPN output | Diffuse reflection type | Frontal shooting | Side firing | |||
| KN-FD14 | KN-FD12 | KN-FT13 | KN-FT19 | KN-LT13 | KN-LT19 | ||
| detection distance | 25mm | 20 mm | 500mm | 1000mm | 500mm | 1000mm | |
| Light source (wavelength) | 650nm red LED | ||||||
| Detected object | Opaque objects with a diameter of 4mm or more | ||||||
| contrast | More than 20% of the detection distance | ||||||
| control output | Black is the signal output line, normally open and normally closed can be switched with a white line | ||||||
| response frequency | Less than 1ms | ||||||
| supply voltage | DC12-24 pulsation (p-p) below 10% (DC10-30) | ||||||
| Consumption current | < 25mA | ||||||
| Consumption current | < 25mA | ||||||
| Switch capacity | ≤3mA | ||||||
| residual voltage | Below 1V (load current 100mA) | ||||||
| circuit protection | Surge protection, short circuit protection, polarity reversal protection | ||||||
| Display light | Action indicator light (red) | ||||||
| ambient temperature | During operation, the temperature ranges from -25 ° C to+70 ° C (without ice or frost). During storage, the temperature ranges from -40 ° C to+85 ° C (without ice or frost) | ||||||
| Environmental illumination impact | Sunlight: below 10000LX incandescent lamp: below 3000LX | ||||||
| Environmental humidity for use | Action time -45% -85% (no icing) RH Storage time: 35% -85% (no icing) RH | ||||||
| The influence of voltage | When the rated power supply voltage fluctuates within ± 15%, the detection distance changes within ± 1% | ||||||
| Insulation impedance | Between the charging unit of 50MQ or above and the casing | ||||||
| dielectric strength | AC1000V and above, between the charging unit and the casing at 50/60Hz for 1 minute | ||||||
| Protection level | IP65 | ||||||
| Display light | Action indicator light (red) | ||||||
| Vibration (durability) | 10-55Hz, 1.5mm double amplitude, reaching 2h in X, Y, Z directions | ||||||
| Impact (durability) | 500m/s? Double amplitude, 10 times in X, Y, Z directions | ||||||
| Connection method | Wire lead out type (standard 2m) | ||||||
| Shell material | PC | ||||||
Application scenarios
Wiring diagram
