Product Features

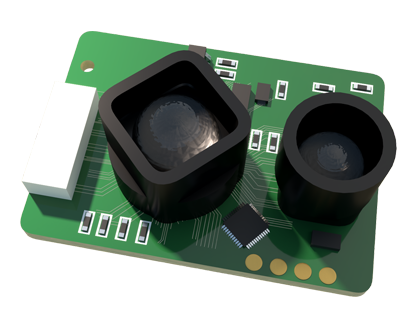

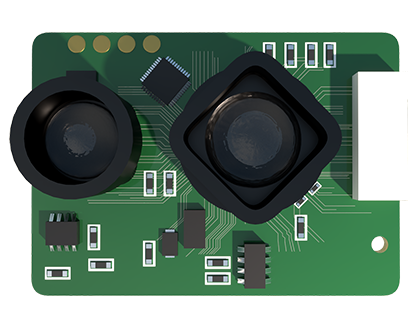

LS-X1Pro
Small laser ranging module LS-X1Pro is a short-range single point ranging radar based on the ToF principle. With unique optical and electrical design, it can achieve stable, accurate, and highly sensitive distance measurement. The product has built-in adaptation algorithms for various application environments and targets, and opens up multiple adjustable configurations and parameters. It can ensure excellent ranging performance in complex environments and meet the complex application needs of customers.
Small stature, great skills
high performance-price ratio
Technical Parameter
| model | LS-X1Pro | |
| range | 0.05-20m (90% reflectivity) 0.05-10m (10% reflectivity) | |
| frequency | 200Hz | |
| Absolute accuracy | ±5cm(＜5m), 1%(≥5m) | |
| repeatability | ±10mm | |
| Anti environmental light | 8 meters @ 100Klux | |
| Measure laser wavelength | 905nm | |
| FOV | 3.4° | |
| INPUT VOLTAGE | 3-3.6VDC | |
| Average Power | 0.4W | |
| communication model | UART and IIC | |

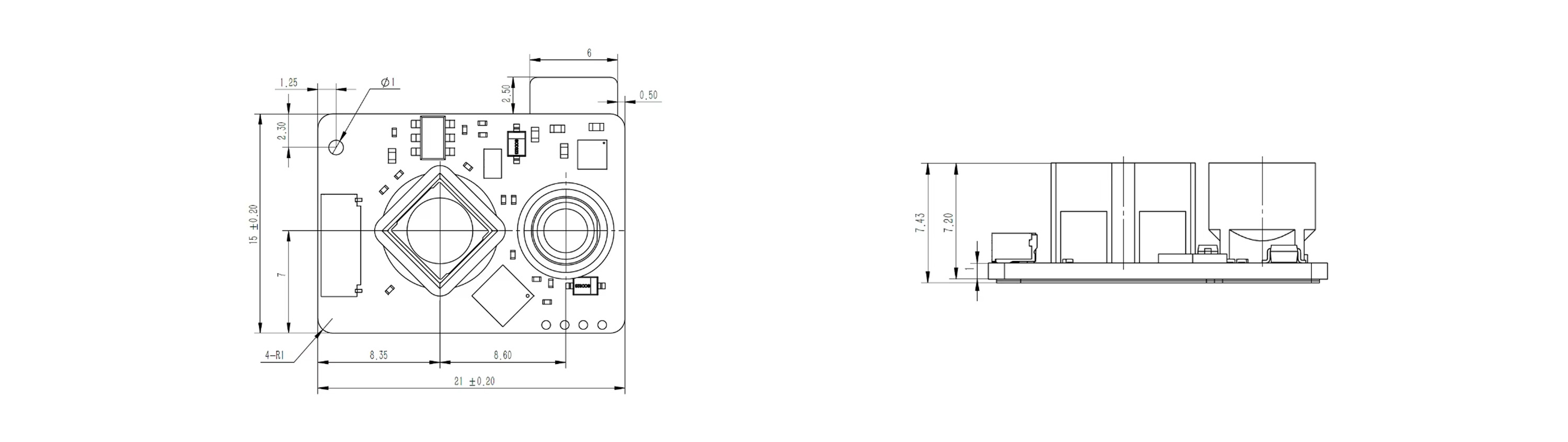

| volume | 21* 15* 7.43mm | |
| weight | 2g | |
| operation temperature | -20℃ ~ +60℃ | |
| Outgoing terminal | 0.8-6Pmm | |
Application scenarios
Wiring diagram
