Product Features
LS-X1A

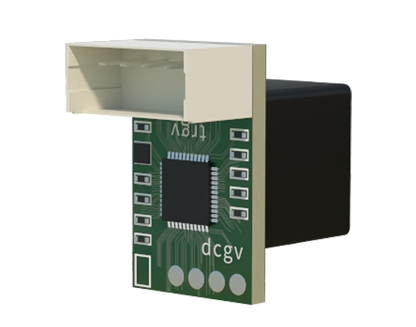

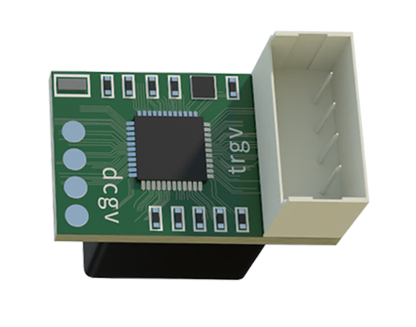

Miniature single point LiDAR module LS-X1A is a fully integrated single channel dToF ranging small module that integrates a highly sensitive infrared enhanced SPAD sensor with a range of up to 20 meters. It adopts a SPAD chip fully integrated solution, histogram statistical algorithm, and fast TDC architecture to achieve high-precision ranging, while also having 15 meters @ 100 KLux anti sunlight capability and reflectivity correction function.

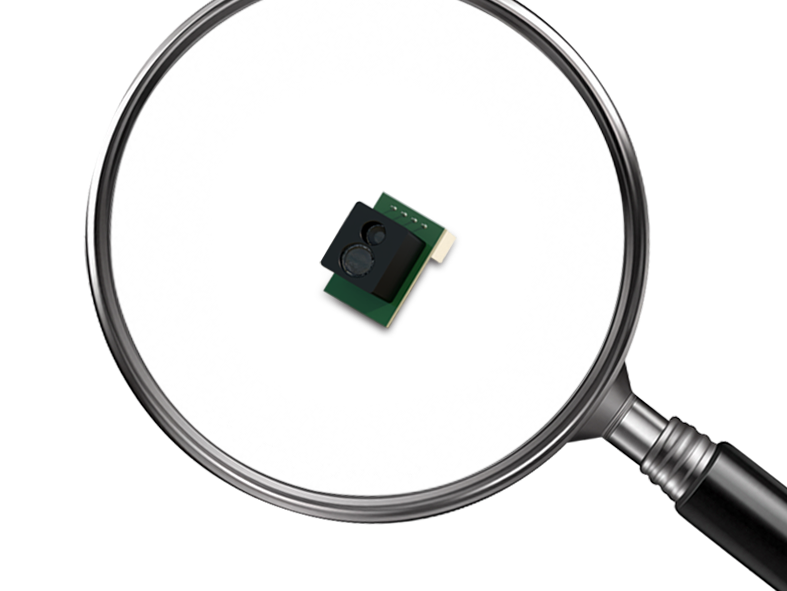

Small size, high performance
Rich functionality and wide application scenarios
Technical Parameter
| model | LS-X1A | |
| range | 0.05-10m (90% reflectivity) 0.05-5m (10% reflectivity) | |
| frequency | 50Hz | |
| Absolute accuracy | ±5cm(＜5m), 1%(≥5m) | |
| repeatability | ±10mm | |
| Anti environmental light | 1.8 meters @ 70Klux | |
| Measure laser wavelength | 940nm | |
| FOV | 3° | |
| INPUT VOLTAGE | 4.5-5.5VDC | |
| Average Power | 0.1W | |
| communication model | UART | |

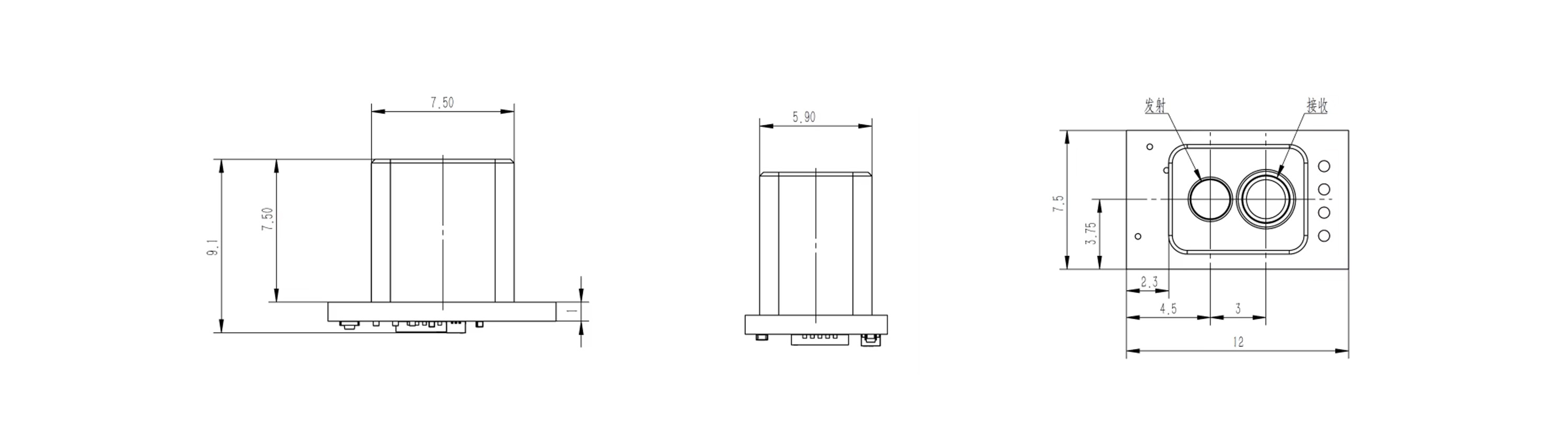

| volume | 12* 7.5* 9.1mm | |
| weight | 1g | |
| operation temperature | -20℃ ~ +60℃ | |
| Outgoing terminal | 4P 1.25mm | |
Application scenarios
Wiring diagram
