Product Features

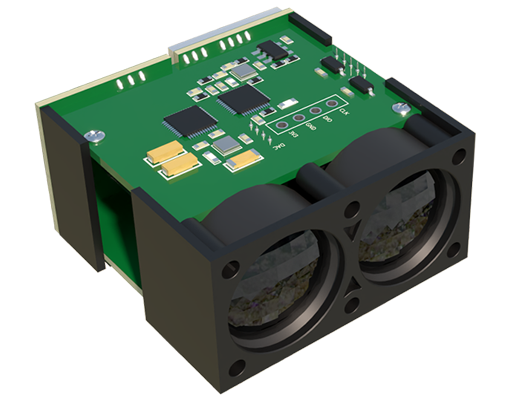

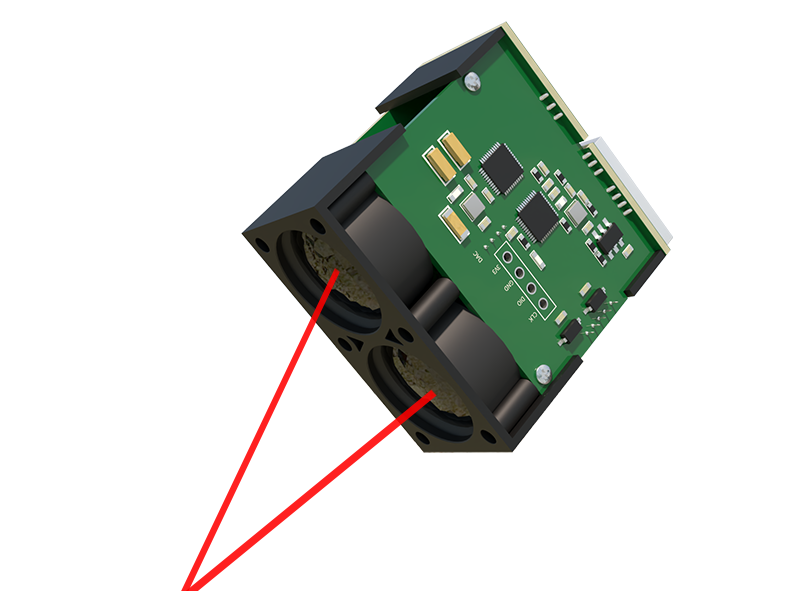

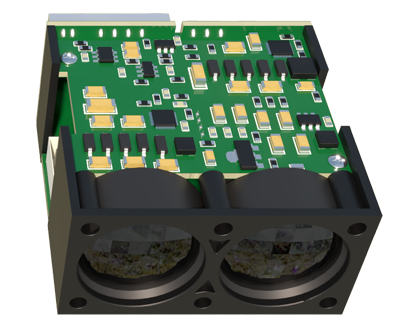

LL-X3A
Lightweight, only 10 grams It is a globally leading lightweight laser radar product with a range of over 200 meters. Can significantly improve the operation time of drones, reducing 1 g can increase by about 6 seconds
Small size
High product maturity
Technical Parameter
| model | LL-X3A | |
| range | 0.05m-200mm @ 50% reflectivity | |
| frequency | 20-20000Hz adjustable | |
| resolution | 1mm | |
| accuracy | ± 50mm system error | |
| accuracy | ± 30mm standard deviation | |
| Anti environmental light | 100Klux | |
| Measure laser wavelength | 905nm | |
| FOV | 4mrad | |
| Measure laser level | Class1 | |
| Indicate laser wavelength | -- | |
| Indicate laser level | -- | |
| INPUT VOLTAGE | 9～36V | |
| Average Power | ＜1W | |
| communication model | Gold、IIC | |
| protection grade | IP65 | |
| volume | 33mm x34mm x18mm | |
| weight | ＜25g | |
| Shell material | -- | |
| operation temperature | -20℃-+60℃ | |
| Outgoing terminal | 5P | |
Application scenarios
Wiring diagram
