Product Features

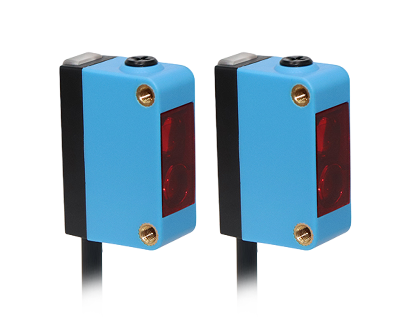

Laser type photoelectric sensor

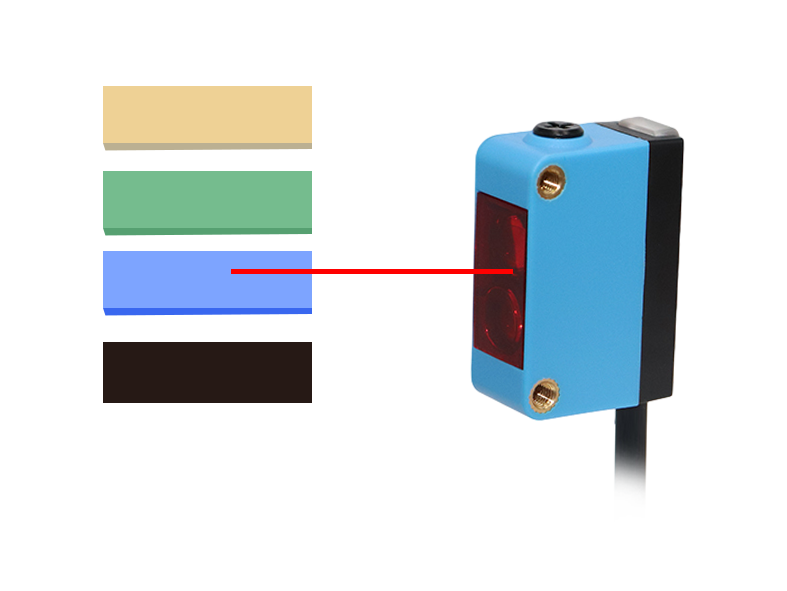

Not affected by changes in object color and texture The principle of triangulation detects the distance of an object rather than the amount of light received, so regardless of the color of the workpiece, it does not affect the detection
Visible light spot can be selected according to demand
Modular production process for chip design

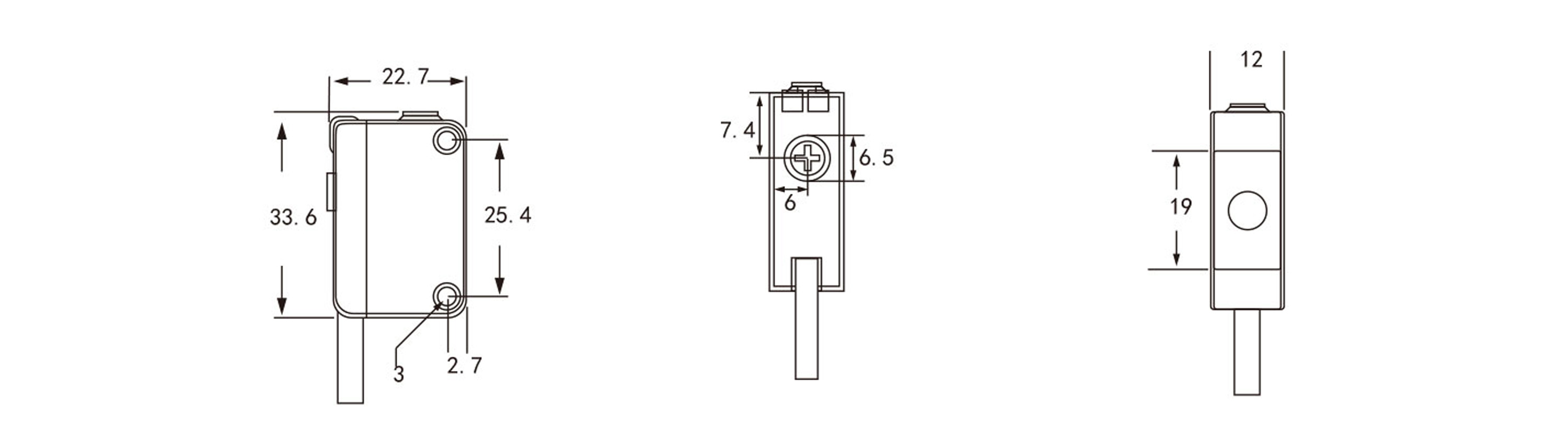

Technical Parameter
| output | Shooting type | Specular reflection type | Diffuse - reflection | |
| model | NPN | KN-LT61 | KN-LR61 | KN-LD61 |
| Detected object | 10x10mm white drawing paper | 10x10mm white drawing paper | Opaque objects with a diameter>2mm | |
| Light source (wavelength) | 660 nanometer red laser | |||
| supply voltage | DC12-24V pulsation (p-p) below 10% (DC10-30) | |||
| control output | Load power supply current below 150mA (residual voltage below 1V) | |||
| circuit protection | Surge protection, short circuit protection, polarity reversal protection | |||
| response time | Action/reply within 1.0ms each | |||
| Display light | Action indicator light (red) | |||
| Environmental illumination impact | Incandescent lamp: below 3000Lx | |||
| Environmental humidity for use | Action time -45% -85% (no icing) RH Storage time: 35% -85% (no icing) RH | |||
| The influence of voltage | When the rated power supply voltage fluctuates within ± 15%, the detection distance changes within ± 1% | |||
| Insulation Resistance | Between the charging unit and the casing of a DC500 megohmmeter with a resistance of over 20M Ω | |||
| dielectric strength | AC1000V and above, between the charging unit and the casing at 50/60Hz for 1 minute | |||
| Vibration (durability) | 10-50Hz, 1.5mm double amplitude, reaching 1h in X, Y, Z directions | |||
| Impact (durability) | 500m/s * 2 double amplitude, 3 times in X, Y, Z directions | |||
| Protective structure | IP65 | |||
| control output | DC12-24V pulsation (p-p) below 10% (DC10-30) | |||
| Connection method | Wire lead out type (standard 2m) | |||
| Shell material | ABS | |||
