Product Features

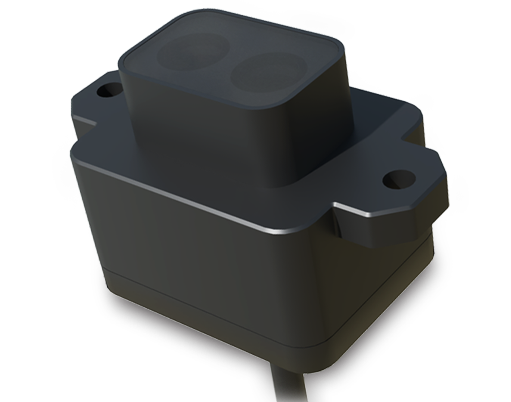

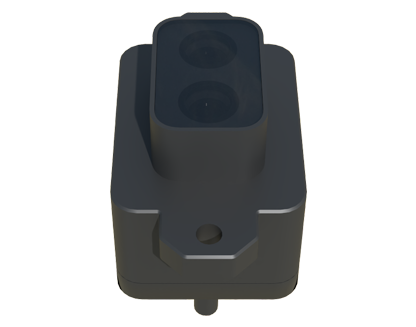

LS-X1Max
Low cost laser ranging module LS-X1Max is a short-range single point LiDAR with three major advantages: low cost, small size, and low power consumption. It has multiple interfaces to meet the needs of different customers. As an upgraded version, LS-X1Max maintains its compact and lightweight design, with higher performance and wider applicability in various fields.
Small stature, great wisdom
Low power consumption, high frequency
Technical Parameter
| model | LS-X1Max | |
| range | 0.03-20m (90% reflectivity) | |
| frequency | 500Hz | |
| resolution | 1mm | |
| accuracy | 1% | |
| accuracy | ±10mm | |
| Anti environmental light | 12 meters @ 100Klux | |
| Measure laser wavelength | 905nm | |
| FOV | 1.7° | |
| Measure laser level | Class3R | |
| Indicate laser wavelength | N/A | |
| Indicate laser level | N/A | |
| INPUT VOLTAGE | 3.3-5VDC | |
| Average Power | 0.5W | |
| communication model | UART，IIC， 485, switch quantity | |
| protection grade | IP67 | |
| volume | 45.5* 24.5* 27.5mm | |
| Shell material | ABS/PC/PMMA | |
| operation temperature | -30℃~+65℃ | |
| Outgoing terminal | 4P | |
Application scenarios
Wiring diagram
